Описание
Фрезерованные обводные колеса-разделенные
| Z | Ø 18* | Ø25 | Ø30 | Ø35 | Ø40 |
|---|---|---|---|---|---|
| 17 | 820-17R18M-RMS | 820-17R25M-RMS | 820-17R30M-RMS | 820-17R35M-RMS | 820-17R40M-RMS |
| 19 | 820-19R18M-RMS | 820-19R25M-RMS | 820-19R30M-RMS | 820-19R35M-RMS | 820-19R40M-RMS |
| 21 | 820-21R18M-RMS | 820-21R25M-RMS | 820-21R30M-RMS | 820-21R35M-RMS | 820-21R40M-RMS |
| 23 | 820-23R18M-RMS | 820-23R25M-RMS | 820-23R30M-RMS | 820-23R35M-RMS | 820-23R40M-RMS |
| 25 | 820-25R18M-RMS | 820-25R25M-RMS | 820-25R30M-RMS | 820-25R35M-RMS | 820-25R40M-RMS |
| 27 | 820-27R18M-RMS | 820-27R25M-RMS | 820-27R30M-RMS | 820-27R35M-RMS | 820-27R40M-RMS |
| 29 | 820-29R18M-RMS | 820-29R25M-RMS | 820-29R30M-RMS | 820-29R35M-RMS | 820-29R40M-RMS |
Фрезерованные звездочки цепного привода-цельные плотно
прилегающие
| Z | Ø25 | Ø30 | Ø35 | Ø40 |
|---|---|---|---|---|
| 17 | 820-17R25M-DM | 820-17R30M-DM | 820-17R35M-DM | 820-17R40M-DM |
| 19 | 820-19R25M-DM | 820-19R30M-DM | 820-19R35M-DM | 820-19R40M-DM |
| 21 | 820-21R25M-DM | 820-21R30M-DM | 820-21R35M-DM | 820-21R40M-DM |
| 23 | 820-23R25M-DM | 820-23R30M-DM | 820-23R35M-DM | 820-23R40M-DM |
| 25 | 820-25R25M-DM | 820-25R30M-DM | 820-25R35M-DM | 820-25R40M-DM |
| 27 | 820-27R25M-DM | 820-27R30M-DM | 820-27R35M-DM | 820-27R40M-DM |
| 29 | 820-29R25M-DM | 820-29R30M-DM | 820-29R35M-DM | 820-29R40M-DM |
Gefräste Umlenkkettenräder – geteilt
| Z | Ø25 | Ø30 | Ø35 | Ø40 |
|---|---|---|---|---|
| 17 | 820-17R25M-RM | 820-17R30M-RM | 820-17R35M-RM | 820-17R40M-RM |
| 19 | 820-19R25M-RM | 820-19R30M-RM | 820-19R35M-RM | 820-19R40M-RM |
| 21 | 820-21R25M-RM | 820-21R30M-RM | 820-21R35M-RM | 820-21R40M-RM |
| 23 | 820-23R25M-RM | 820-23R30M-RM | 820-23R35M-RM | 820-23R40M-RM |
| 25 | 820-25R25M-RM | 820-25R30M-RM | 820-25R35M-RM | 820-25R40M-RM |
| 27 | 820-27R25M-RM | 820-27R30M-RM | 820-27R35M-RM | 820-27R40M-RM |
| 29 | 820-29R25M-RM | 820-29R30M-RM | 820-29R35M-RM | 820-29R40M-RM |
Material: Polyamid, DIN 6885 Nut. * простое сверление

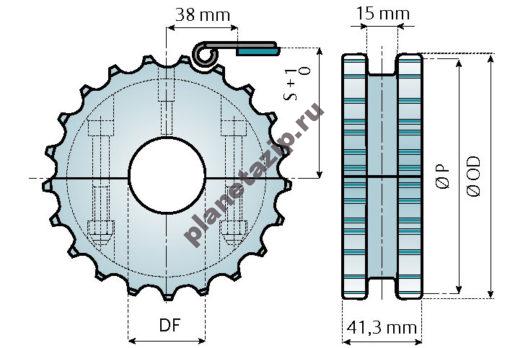

Параметры
| Z | Ø OD mm |
Ø P mm |
S mm |
|---|---|---|---|
| 17 | 103.9 | 105.47 | 55.9 |
| 19 | 117 | 117.34 | 61.9 |
| 21 | 129 | 129.26 | 67.8 |
| 23 | 142 | 141.21 | 73.8 |
| 25 | 154 | 153.21 | 79.8 |
| 27 | 166.8 | 165.2 | 85.8 |
| 29 | 178.5 | 177.24 | 91.8 |
