Описание
Фрезерованные звездочки с цепным приводом-разделенные, неподвижные
| Z | Ø 25 | Ø 30 | Ø 35 | Ø 40 | Ø 45 |
|---|---|---|---|---|---|
| 17 | 815-17R25M-DMS | 815-17R30M-DMS | 815-17R35M-DMS | 815-17R40M-DMS | – |
| 19 | 815-19R25M-DMS | 815-19R30M-DMS | 815-19R35M-DMS | 815-19R40M-DMS | – |
| 21 | 815-21R25M-DMS | 815-21R30M-DMS | 815-21R35M-DMS | 815-21R40M-DMS | 815-21R45M-DMS |
| 23 | 815-23R25M-DMS | 815-23R30M-DMS | 815-23R35M-DMS | 815-23R40M-DMS | 815-23R45M-DMS |
| 25 | 815-25R25M-DMS | 815-25R30M-DMS | 815-25R35M-DMS | 815-25R40M-DMS | 815-25R45M-DMS |
| 27 | 815-27R25M-DMS | 815-27R30M-DMS | 815-27R35M-DMS | 815-27R40M-DMS | – |
| 29 | 815-29R25M-DMS | 815-29R30M-DMS | 815-29R35M-DMS | 815-29R40M-DMS | – |
Фрезерованные обводные колеса-разделенные
| Z | Ø 18* | Ø 25 | Ø 30 | Ø 35 | Ø 40 |
|---|---|---|---|---|---|
| 17 | 815-17R18M-RMS | 815-17R25M-RMS | 815-17R30M-RMS | 815-17R35M-RMS | 815-17R40M-RMS |
| 19 | 815-19R18M-RMS | 815-19R25M-RMS | 815-19R30M-RMS | 815-19R35M-RMS | 815-19R40M-RMS |
| 21 | 815-21R18M-RMS | 815-21R25M-RMS | 815-21R30M-RMS | 815-21R35M-RMS | 815-21R40M-RMS |
| 23 | 815-23R18M-RMS | 815-23R25M-RMS | 815-23R30M-RMS | 815-23R35M-RMS | 815-23R40M-RMS |
| 25 | 815-25R18M-RMS | 815-25R25M-RMS | 815-25R30M-RMS | 815-25R35M-RMS | 815-25R40M-RMS |
| 27 | 815-27R18M-RMS | 815-27R25M-RMS | 815-27R30M-RMS | 815-27R35M-RMS | 815-27R40M-RMS |
| 29 | 815-29R18M-RMS | 815-29R25M-RMS | 815-29R30M-RMS | 815-29R35M-RMS | 815-29R40M-RMS |
Material: Polyamid, Schrauben aus rostfreiem Stahl, Muttern aus verzinktem Stahl, DIN 6885 Passfeder

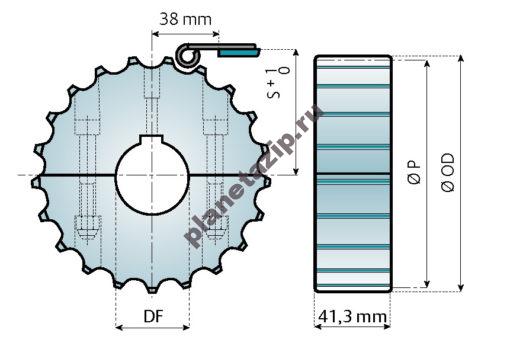

Параметры
| Z | Ø OD mm |
Ø P mm |
S mm |
|---|---|---|---|
| 17 | 103.9 | 105.47 | 55.9 |
| 19 | 117 | 117.34 | 61.9 |
| 21 | 129 | 129.26 | 67.8 |
| 23 | 142 | 141.21 | 73.8 |
| 25 | 154 | 153.21 | 79.8 |
| 27 | 166.8 | 165.2 | 85.8 |
| 29 | 178.5 | 177.24 | 91.8 |
